🎵🐢 Music Quick Viewer (SDL2)
A rich audio quick viewer plugin for Nuclr Commander. It opens music files directly inside the quick view panel, plays them through SDL2 / SDL2_mixer, and renders a live waveform so tracker modules feel as lively as they sound. 🎛️🐢
✨ What It Does
- 🎵 Plays music and audio files from Nuclr's quick view panel
- 🎛️ Supports tracker formats:
xm,mod,s3m,it,669 - 🔊 Supports common audio formats:
mp3,ogg,flac,wav,aac,aiff,voc,mid - 🌈 18 live visualizers driven from the SDL post-mix audio callback and an FFT — pick one from the right-click menu on the visualizer
- ▶️ Play/pause, stop, seek, rewind (−10 s), and forward (+10 s) controls
- 🎚️ Progress bar with seeking, plus a volume slider
- ⏱️ Current time and total duration display (when SDL_mixer exposes them)
🌈 Visualizers
Right-click the visualizer area to choose an effect. The choice is remembered for the rest of the session (the default is Amiga Cracktro).
| Effect | Style |
|---|---|
| Reactor Core ☢ | Pulsing reactor with a layered background |
| Invasion '95 ▣ | Descending-swarm shooter where each column of aliens is an FFT band — they ride their band, flash on its spikes, and the swarm marches on the kick |
| Hyperspace ◆ | Vector-arcade rock shooter that plays itself — splitting asteroids, saucers, screen wrap, bloom; every shot fires on the kick |
| Second Horizon ▩ | 1993 PC demo style — six parts (starfield, glenz vectors, moiré, dot morph, warped logo, kefrens) that cut to the beat |
| Miami ✈ | Retrowave — outrun sunset, chrome wordmark, neon billboard |
| Aurora Mirror Wave | Neon mirrored waveform with a Catmull-Rom spline and multi-pass glow |
| Neon Spectrum Bars | FFT spectrum analyser |
| Assembly Demoscene ▲ | Demoscene tribute |
| id Inferno ☠ | Rip & Tear |
| Amiga Cracktro ◉ | Default — Boing! |
| ZX Spectrum ▚ | LOAD "" loading stripes |
| Norton Commander ▓ | MS-DOS text mode |
| BBS / ANSI ▒ | 14400 baud ANSI art |
| Dendy ▲ | TANK 1990 |
| C64 PETSCII ▞ | LOAD"*",8,1 |
| Vectrex ✦ | Vector glow |
| Game Boy ▦ | Falling blocks |
| Macintosh ☺ | 1-bit dither |
🖼️ Screenshots

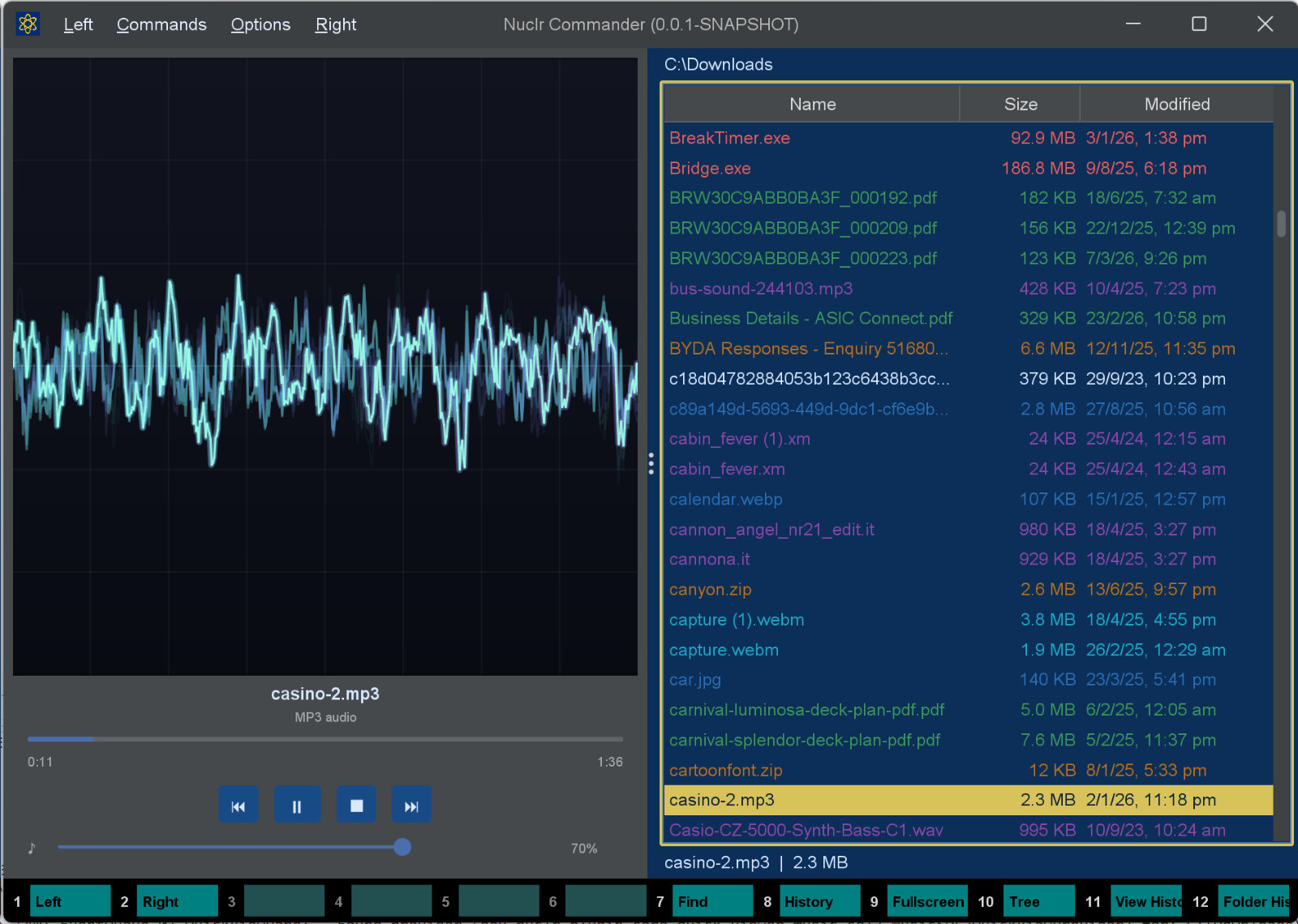

Main Player View

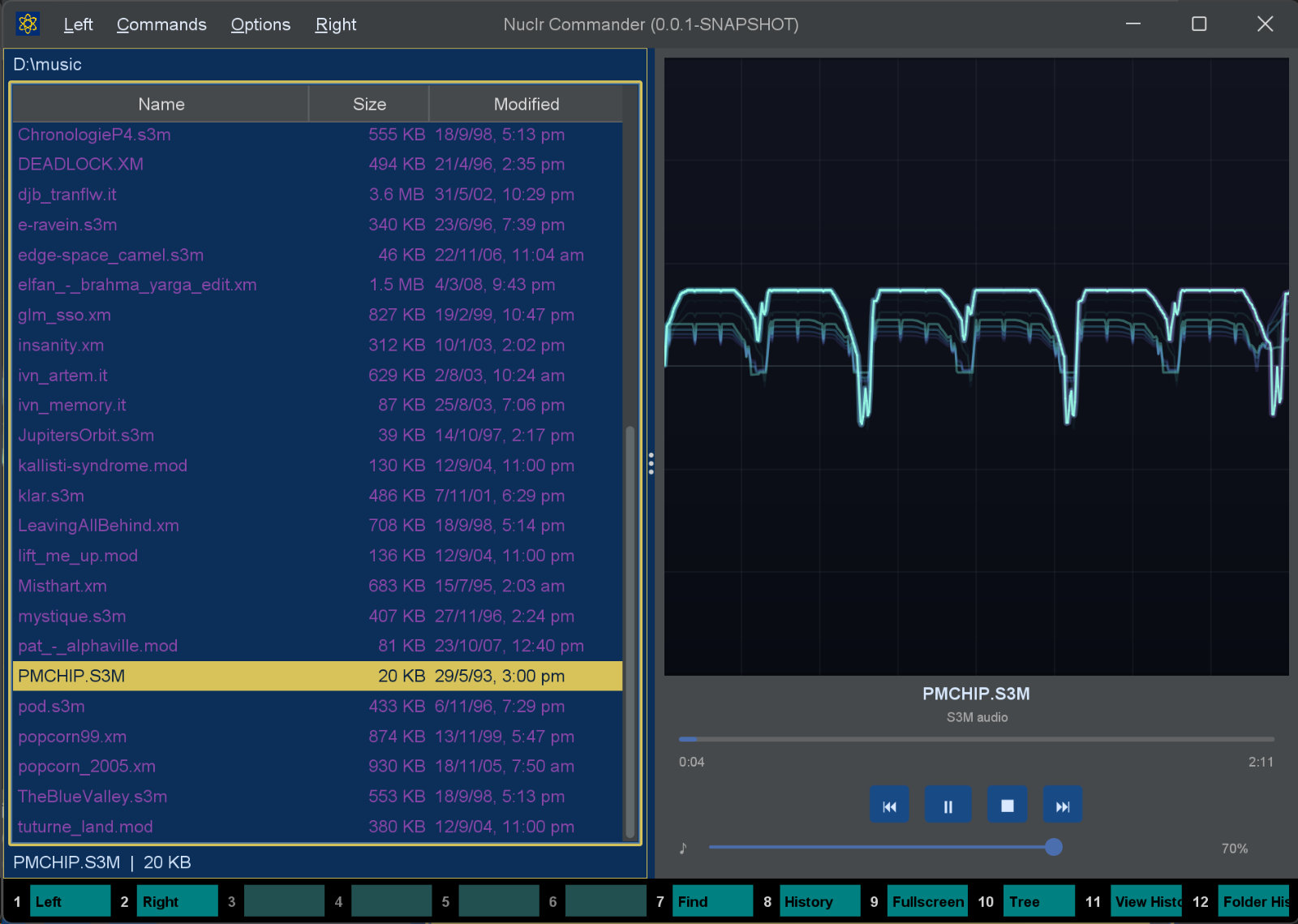

Quick View In Action
🎚️ Player Controls
| Control | Action |
|---|---|
⏮ | Jump back 10 seconds |
▶ / ⏸ | Toggle play / pause |
■ | Stop playback |
⏭ | Jump forward 10 seconds |
| Progress bar | Click or drag to seek |
| Volume slider | Adjust output level |
| Right-click on visualizer | Choose the visualizer effect |
🧩 Supported Extensions
| Category | Extensions |
|---|---|
| 🎼 Tracker modules | xm, mod, s3m, it, 669 |
| 🔊 Common audio | mp3, ogg, flac, wav, aac, aiff, voc, mid |
🖥️ Runtime Requirements
This plugin depends on SDL2 and SDL2_mixer.
On Linux, the plugin loads the versioned runtime SONAMEs (libSDL2-2.0.so.0
and libSDL2_mixer-2.0.so.0), so the development packages are not required.
Windows 🪟
Windows native libraries are bundled with the plugin and extracted automatically at runtime. No extra installation needed.
macOS 🍎
brew install sdl2_mixer
The sdl2_mixer formula installs the SDL2 compatibility runtime and codec dependencies. The plugin auto-detects standard Homebrew library locations (/opt/homebrew/lib, /usr/local/lib, /opt/local/lib). For a custom location, launch the JVM with:
-Djna.library.path=/path/to/libs
Linux 🐧
sudo apt-get install libsdl2-2.0-0 libsdl2-mixer-2.0-0
For a custom location:
-Djna.library.path=/path/to/libs
🖼️ Thumbnail
The track's embedded front cover, from ID3, FLAC, Ogg/Opus, WAV and AIFF tags. A track without artwork gets the plugin's own icon instead: tracker-icon.png for a tracker module (XM, MOD, S3M, IT, 669), which carries no artwork, and audio-icon.png for any other format. SDL is never touched, so it works where playback does not; for a resource without a local file only the first 32 MB, where the tags are, is staged.
It implements the platform SDK 6.0.0 thumbnail methods, so plugins that want a picture of a file - attachment chips in AI Projects, for one - get it through Commander.
📥 Installation
Copy the signed plugin archive and detached signature into the Nuclr Commander plugins/ directory:
quick-view-sdl2-music-<version>.zip
quick-view-sdl2-music-<version>.zip.sig
Nuclr Commander verifies the RSA-SHA256 signature against nuclr-cert.pem on load. The plugin becomes available immediately without a restart.
⚙️ How it works
MusicSDL2QuickViewPlugin initialises SDL2 and SDL2_mixer via JNA bindings. On Windows, NativeLibExtractor unpacks the bundled .dll files to a temp directory before the JNA load. The Mix_SetPostMix callback runs on the SDL audio thread and writes S16 stereo PCM into AudioRingBuffer as mono float samples; WaveformPanel reads a snapshot on the EDT at ~60 fps, runs it through Fft where the effect needs frequency data, and delegates painting to the selected visualizer. Processing arrays are pre-allocated to avoid GC pressure in the render loop. Loading and SDL initialisation run on a virtual thread so the Swing EDT stays responsive.
🗂️ Source Layout
src/main/java/
├── dev/nuclr/plugin/core/quick/viewer/music/sdl2/
│ ├── MusicSDL2QuickViewPlugin.java plugin entry point
│ ├── MusicSDl2ViewPanel.java player UI panel (transport, seek bar, volume)
│ ├── WaveformPanel.java render loop, visualizer mode menu, dispatch
│ ├── Fft.java FFT used by the spectrum-driven effects
│ ├── TextModeScreen.java shared text-mode cell grid (DOS/BBS/C64/ZX effects)
│ ├── ReactorBackground.java layered backdrop for the Reactor effect
│ └── *Visualizer.java the 18 effects (Reactor, Invasion '95, Hyperspace, …)
└── sdl2/
├── SDLMixerAudio.java SDL2 / SDL2_mixer JNA bindings
├── AudioRingBuffer.java lock-free SPSC ring buffer for PCM samples
├── Sdl2Support.java platform capability / availability checks
├── Sdl2LibraryNames.java per-OS library SONAMEs
├── NativeLibExtractor.java Windows native library extractor
└── SDLDiagnostic.java standalone SDL environment diagnostics
📚 Dependencies
| Library | Version | Purpose |
|---|---|---|
dev.nuclr:platform-sdk | 6.0.0 | Nuclr platform interfaces |
jna | 5.18.1 | Native SDL2 / SDL2_mixer bindings |
🌐 Links
- Website: https://nuclr.dev
- Plugin page: https://nuclr.dev/plugins/core/music-sdl2-quick-viewer.html
📄 License
Apache-2.0. SDL-related runtime notices are included in the repository where required.
