🐢📦 Archive Quick Viewer
A Nuclr Commander plugin that renders a read-only quick preview for common archive formats. It does not extract files or mount the archive. Instead, it shows the generally available metadata you usually want at a glance: file counts, total sizes, root entries, timestamps, and a bounded file listing. Slow and steady, but for archives. 🐢
👀 What It Shows
| Section | Details |
|---|---|
| Summary | Archive name, detected format, archive size, modified time, entry/file/directory counts, root entry count |
| Totals | Total unpacked size and, where available, packed size and compression ratio |
| Details | Earliest and latest entry timestamps, archive comment when present |
| Root Entries | Top-level files/folders with descendant counts, aggregate size, and latest timestamp |
| Warnings | Encryption flags, multi-volume hints, truncated lists, or metadata limits |
| Files | A bounded listing of archive members with path, size, and timestamp when available |
🧰 Supported Formats
| Format | Extensions |
|---|---|
| ZIP family | zip, jar, war, ear, apk, xapk, apks, apkm |
| TAR | tar, tar.gz, tgz, tar.bz2, tbz2, tbz, tar.xz, txz |
| Single-file compressed | gz, bz2, xz |
| 7-Zip | 7z |
| RAR | rar |
| CPIO | cpio |
| Unix AR | ar |
Some formats expose more metadata than others. For example, packed sizes are usually available for ZIP/RAR entries but not for all stream-based archive formats. 🐢
✨ Design Notes
- Read-only preview: no extraction, mutation, or external tools
- Cancellation-aware: switching files cancels the in-flight parse
- Asynchronous loading: parsing runs off the Swing EDT on a virtual thread
- Bounded UI output: the file list is capped so very large archives do not flood the quick-view panel
- Best-effort metadata: timestamps, comments, compression totals, and encryption flags are shown when the underlying format exposes them
🖼️ Thumbnail

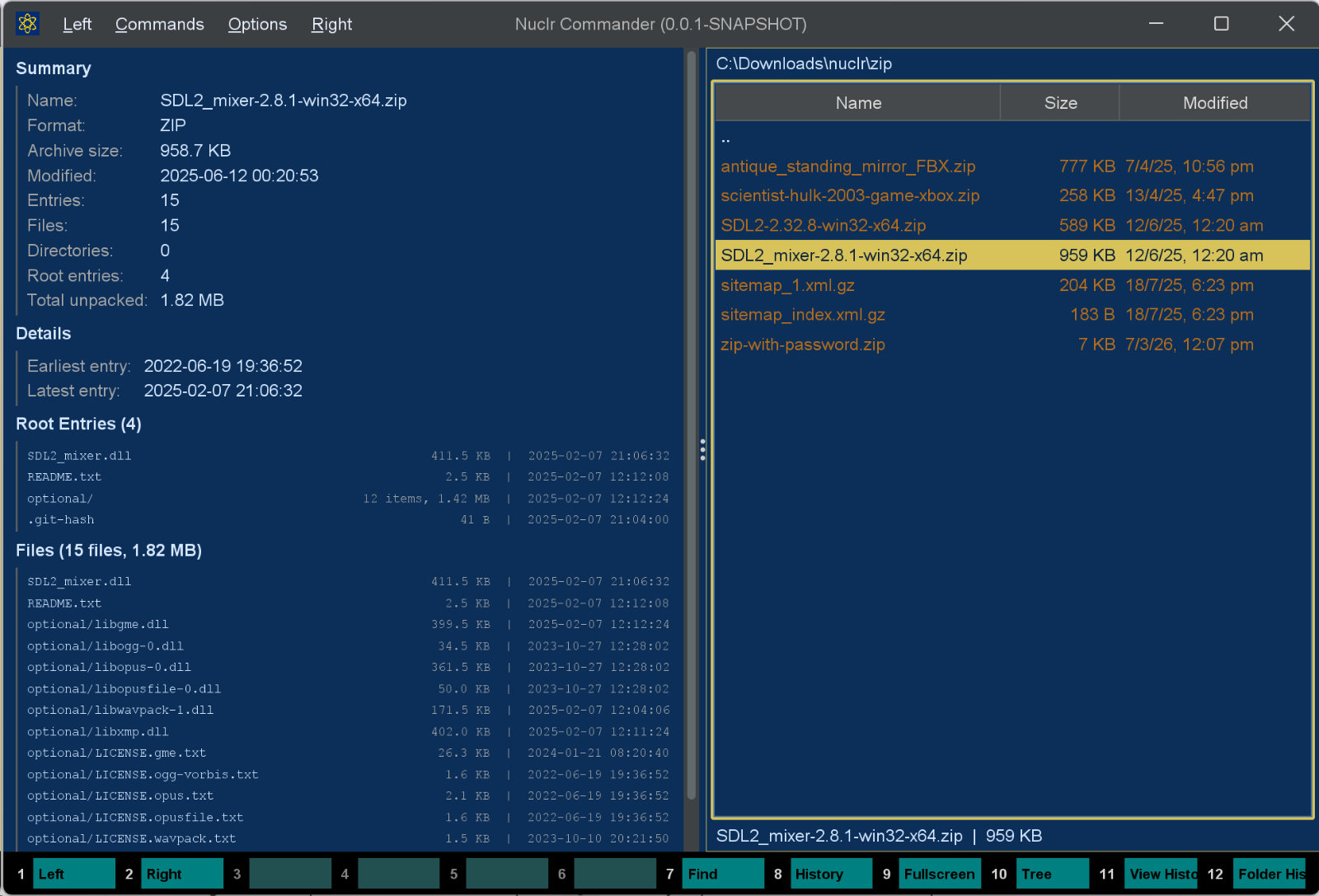

A listing page: the archive's name, format, file count and size, then its top-level entries.
It implements the platform SDK 6.0.0 thumbnail methods, so plugins that want a picture of a file - attachment chips in AI Projects, for one - get it through Commander.
📥 Installation
Copy the signed plugin archive and detached signature into the Nuclr Commander plugins/ directory:
quick-view-archive-<version>.zip
quick-view-archive-<version>.zip.sig
Nuclr Commander verifies the RSA-SHA256 signature against nuclr-cert.pem on load. The plugin becomes available immediately without a restart.
🗂️ Source Layout
src/main/java/dev/nuclr/plugin/core/quick/viewer/
├── ArchiveQuickViewProvider.java plugin entry point
├── ArchiveViewPanel.java Swing UI renderer
└── archive/
├── ArchiveParser.java format detection and metadata extraction
├── ArchiveMetadata.java parsed archive summary model
├── ArchiveEntryInfo.java individual file entry model
└── ArchiveRootInfo.java top-level aggregate model
⚙️ Implementation Notes
- ZIP-family archives are read with Apache Commons Compress
ZipFile📦 - TAR and compressed TAR variants are inspected as streams 🌊
- 7z support uses Commons Compress plus
org.tukaani:xz7️⃣ - RAR support uses
junrar🧩 - Single-file compressed formats such as plain
.gzcan only expose limited metadata compared with container formats like.zipor.tar.gz📝
📚 Dependencies
| Library | Version | Purpose |
|---|---|---|
dev.nuclr:platform-sdk | 6.0.0 | Nuclr platform interfaces |
commons-compress | 1.28.0 | ZIP, TAR, 7z, GZ, BZ2, XZ, CPIO, AR parsing |
junrar | 7.5.8 | RAR archive parsing |
xz | 1.11 | XZ decompression support |
📄 License
Apache License 2.0. See LICENSE.
